3/4. A flow meter (or a flow sensor) is an instrument that is used to indicate the amount of liquid, gas, or vapor moving through a pipe or conduit by measuring linear, non-linear, mass, or volumetric flow rates. The basis of the magnetic flow meter is Faraday's Law of Electromagnetic Induction.
No additional pressure drops.
In a magnetic flow meter an electromagnet placed either side of the bore creates a magnetic field when the power is turned on. The electromagnetic flow meter provides rapid response to flow changes. Magnetic Flow Meter. Magnetic flow meters use a magnetic field to generate and channel liquid flow through a pipe. Magnetic Flow Meters are also known as Electromagnetic Flow Meters and more commonly known as a Mag Meter. Mag-flow meters are used to measure the flow velocity of conductive liquids. Lets break that down just a bit with an example. The typical accuracy for a magnetic flow meter is + 0.5 % of full scale. Magnetic flow meters, also known as mag meters or electromagnetic flow meters, are obstruction-less, uni-directional or bi-directional, volumetric flow meters that can be used in a variety of field applications. Magnetic flow meters use a magnetic field to generate and channel liquid flow through a pipe. After having undergone several improvements, magnetic flow meters have become highly accurate and reliable and are widely used in the industrial instrument field today. Starting at $4,453.57. It have been widely used in the flow measurement of various conductive liquids in industrial processes.
Rosemount 8705 Flanged Magnetic Flow Meter Sensors. PD Flow Meters Measure Ingredients In The Snack Food Industry. Chemical Production and Processing Industry. your username. No obstruction is created to flow. It has ability to measure reverse flow.
Mfg.
This electromagnetic flow meter is ideal when used for measuring inhomogeneous fluid flows, dirty liquids, liquids containing mud or for waste fluids or intake water, raw material water, water from reservoirs or rivers that contain a lot of dirt or garbage (plastic, grass or other), so it is quite suitable for use as a waste flow meter. The magnetic flow meter has rarely been considered a critical technology in upstream oil and gas. cisco ir1100. and this voltage is picked up by measuring electrodes that show yellow color in the image. In the magnetic flowmeter pipe parts, a magnetic field is generated, and channeled into the liquid flowing through the pipe. The recent rise in produced water as part of oil production in the U.S. has created new opportunities for it. Magnetic flow meters are well suited for a variety of applications across a range of industries including Log into your account. There are different reasons why youd want to be able to measure this, such as fine-tuning costs, emissions, and quality to name a few. 0. Copy the code from BME688 - read sensor data Arduino code, paste it one new file (or The electromagnetic flow meter is mainly composed of a signal converter and a sensor. Faulty instruments and imprecise data [] Measuring range setting can be optimized. If the magnetic flow meters transmitter is mounted directly on the sensor, then check the connections in the magnetic flow meters transmitter. Liquid flow meters are essential in measuring the displacement or bulk movement of liquids in an application. The FMG90B Series electromagnetic flow meters are designed for measurement of conductive Accurate water flow measurement is crucial in agriculture and irrigation, especially when extreme or varying climates are in play. Magnetic flowmeters can measure properly when the electrical conductivity of the liquid is greater than approximately 5S/cm. Flow meters are flow measuring instruments used to measure the linear, nonlinear, mass, or volumetric flow rate of a gas or a liquid. Most of the industries use chemicals or water in various forms. | Shopping New Ze The magnetic flow meter has a typical turndown ratio of 40:1, which means it can accurately measure a flow rate of as little as 1/40th of its maximum reading. Used to measure the flow of chemicals in the chemical industry because a magnetic flow meter can measure flow as low as 0.33 litre/minute Used to measure the flow in wastewater management system because the system has sludge also which can cause blockage in other types of flow meter Magnetic Flow Meter. Magnetic flowmeters measure the velocity of conductive liquids in pipes, such as water, acids, caustic, and slurries. Such fluids include deionized water (e.g.
The electromagnetic flowmeter is a volumetric flowmeter without any moving parts. Faradays Law In Magnetic Flow Meter Use. A magnetic flow meter (mag flow meter) is a volumetric flow meter which does not have any moving parts and is ideal for wastewater applications or any dirty liquid which is conductive or water based. In a chemical industry, an inaccurate flow measurement for any chemical in liquid or gaseous form can lead to not only low quality final product, but it can actually be catastrophic from safety point of view.

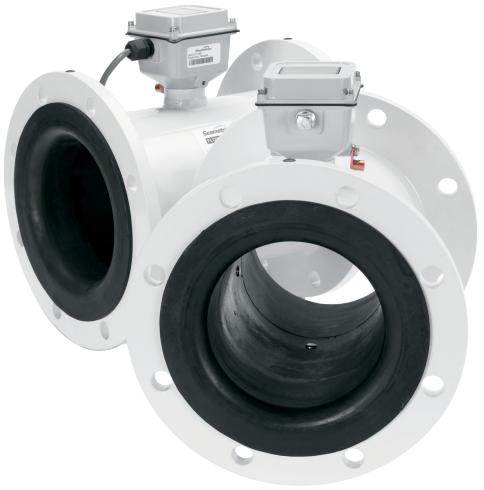

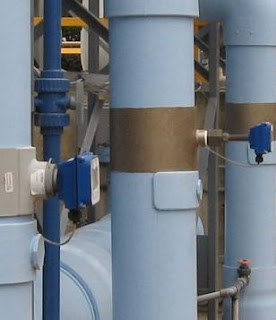

Asmik electromagnetic flow meter is installed at the equipment for Reverse Osmosis System in Greece. Magnetic flow meters use the principle of Faradays Law of Electromagnetic Induction to measure the flow rate of liquid in a pipe. 1. Flow velocity measurement is compensated for temperature via an integrated temperature sensor.

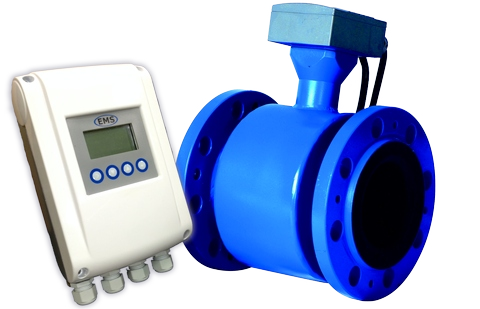

-480x480.png)
This discussion is simply between the two motors. Restart Arduino. B 275 PSI 1.90 MPA 60 Day Guarantee International Buyers- Please Note: Import duties. Some of the other major advantages provided by magnetic flow meters include: Power usage is relatively low, with electrical power requirements as low as 15 watts for some models. Fluids like sand water slurry, coal powder, slurry, sewage, wood pulp, chemicals, water other than distilled water in large pipe lines, hot fluids, high viscous fluids specially in food processing industries, cryogenic fluids can be metered by the electromagnetic flow meter. Magnetic flow meter working principle. ,248.
2021-12-01. Flow is one of the most important parameters in any
There are various types of flow quantification devices available, and one such type is electromagnetic flow meter. Induced Voltage. According to Faradays law, when the conductive fluid flows through a magnetic field of the sensor, an electromotive force proportional to the volume flow is generated between the pair of electrodes, which is perpendicular to the flow direction and the magnetic field. Check the healthiness of the fuse. Uo = K*QV.
The flow rate of this liquid is then calculated using the formula, Q = V x A, where V is velocity of the liquid and A is the cross sectional area of the pipe.
FMG3000 Series magmeters offer a variety of output options for use with Omega flow instrumentation that has a frequency or 4 to 20 mA output.

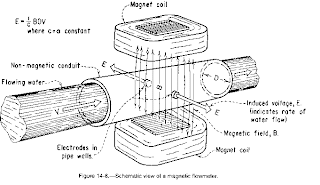

Magnetic flowmeters measure the velocity of conductive liquids in pipes, such as water, acids, caustic, and slurries. Now check the cable healthiness which is connecting the magnetic flow meters transmitter and the sensor. Magnetic flow meters mainly are applicable to liquids that have a conductivity of 0.1 microsiemens per centimeter or greater. These magnetic flow meter are from reliable brands and designed to provide the highest accuracy measurements. Check the healthiness of the fuse. Magnetic flow meter, vortex flow meter, variable area rotameter, Coriolis flow meters are used a lot in petroleum industry. As the conducting liquid flows through the magnetic field a voltage is developed across the liquid. According to Faradays law, when the conductive fluid flows through a magnetic field of the sensor, an electromotive force proportional to the volume flow is generated between the pair of electrodes, which is perpendicular to the flow direction and the magnetic field. Faradays Law In Magnetic Flow Meter Use. A magnetic flow meter relies on Faradays Law of Induction which basically says this: Moving a conductor through a magnetic field will generate an electromotive force which is proportional to the velocity. 1. Click for more details. Most aqueous (water-based) fluids work fine with magnetic flowmeters. The faster the flow of the fluid, the greater the voltage signal generated. A magnetic flow meter ( mag meter , electromagnetic flowmeter) is a transducer that measures fluid flow by the voltage induced across the liquid by its flow through a magnetic field. A Magnetic Flux Loop.png 372 311; 11 KB. Welcome! Introduction to Magnetic Flow Meters. Electromagnetic flowmeter is a kind of volume flow meter. What is a magnetic flow meter used for? The AG90-series battery powered, insertion electromagnetic flow meter is designed for use with conductive fluids in 412 pipe. Magnetic flow meters consist of a detector and a converter, with the principle of the detector adopting Faraday's electromagnetic induction law. Reverse osmosis (RO) is a water purification process that uses a partially permeable membrane to separate ions, unwanted molecules and larger particles from drinking water. Magnetic Flow Meter- Its Working, Uses.
The magnetic flow meters sensor is placed inline and measures an induced voltage generated by the fluid as it flows through a pipe. The electromagnetic flowmeter is also ideal for applications requiring low pressure drop and low maintenance costs.
No additional pressure drops. In a magnetic flow meter an electromagnet placed either side of the bore creates a magnetic field when the power is turned on. The electromagnetic flow meter provides rapid response to flow changes. Magnetic Flow Meter. Magnetic flow meters use a magnetic field to generate and channel liquid flow through a pipe. Magnetic Flow Meters are also known as Electromagnetic Flow Meters and more commonly known as a Mag Meter. Mag-flow meters are used to measure the flow velocity of conductive liquids. Lets break that down just a bit with an example. The typical accuracy for a magnetic flow meter is + 0.5 % of full scale. Magnetic flow meters, also known as mag meters or electromagnetic flow meters, are obstruction-less, uni-directional or bi-directional, volumetric flow meters that can be used in a variety of field applications. Magnetic flow meters use a magnetic field to generate and channel liquid flow through a pipe. After having undergone several improvements, magnetic flow meters have become highly accurate and reliable and are widely used in the industrial instrument field today. Starting at $4,453.57. It have been widely used in the flow measurement of various conductive liquids in industrial processes. Rosemount 8705 Flanged Magnetic Flow Meter Sensors. PD Flow Meters Measure Ingredients In The Snack Food Industry. Chemical Production and Processing Industry. your username. No obstruction is created to flow. It has ability to measure reverse flow. Mfg. This electromagnetic flow meter is ideal when used for measuring inhomogeneous fluid flows, dirty liquids, liquids containing mud or for waste fluids or intake water, raw material water, water from reservoirs or rivers that contain a lot of dirt or garbage (plastic, grass or other), so it is quite suitable for use as a waste flow meter. The magnetic flow meter has rarely been considered a critical technology in upstream oil and gas. cisco ir1100. and this voltage is picked up by measuring electrodes that show yellow color in the image. In the magnetic flowmeter pipe parts, a magnetic field is generated, and channeled into the liquid flowing through the pipe. The recent rise in produced water as part of oil production in the U.S. has created new opportunities for it. Magnetic flow meters are well suited for a variety of applications across a range of industries including Log into your account. There are different reasons why youd want to be able to measure this, such as fine-tuning costs, emissions, and quality to name a few. 0. Copy the code from BME688 - read sensor data Arduino code, paste it one new file (or The electromagnetic flow meter is mainly composed of a signal converter and a sensor. Faulty instruments and imprecise data [] Measuring range setting can be optimized. If the magnetic flow meters transmitter is mounted directly on the sensor, then check the connections in the magnetic flow meters transmitter. Liquid flow meters are essential in measuring the displacement or bulk movement of liquids in an application. The FMG90B Series electromagnetic flow meters are designed for measurement of conductive Accurate water flow measurement is crucial in agriculture and irrigation, especially when extreme or varying climates are in play. Magnetic flowmeters can measure properly when the electrical conductivity of the liquid is greater than approximately 5S/cm. Flow meters are flow measuring instruments used to measure the linear, nonlinear, mass, or volumetric flow rate of a gas or a liquid. Most of the industries use chemicals or water in various forms. | Shopping New Ze The magnetic flow meter has a typical turndown ratio of 40:1, which means it can accurately measure a flow rate of as little as 1/40th of its maximum reading. Used to measure the flow of chemicals in the chemical industry because a magnetic flow meter can measure flow as low as 0.33 litre/minute Used to measure the flow in wastewater management system because the system has sludge also which can cause blockage in other types of flow meter Magnetic Flow Meter. Magnetic flowmeters measure the velocity of conductive liquids in pipes, such as water, acids, caustic, and slurries. Such fluids include deionized water (e.g. The electromagnetic flowmeter is a volumetric flowmeter without any moving parts. Faradays Law In Magnetic Flow Meter Use. A magnetic flow meter (mag flow meter) is a volumetric flow meter which does not have any moving parts and is ideal for wastewater applications or any dirty liquid which is conductive or water based. In a chemical industry, an inaccurate flow measurement for any chemical in liquid or gaseous form can lead to not only low quality final product, but it can actually be catastrophic from safety point of view. Asmik electromagnetic flow meter is installed at the equipment for Reverse Osmosis System in Greece. Magnetic flow meters use the principle of Faradays Law of Electromagnetic Induction to measure the flow rate of liquid in a pipe. 1. Flow velocity measurement is compensated for temperature via an integrated temperature sensor. 2021-12-01. Flow is one of the most important parameters in any There are various types of flow quantification devices available, and one such type is electromagnetic flow meter. Induced Voltage. According to Faradays law, when the conductive fluid flows through a magnetic field of the sensor, an electromotive force proportional to the volume flow is generated between the pair of electrodes, which is perpendicular to the flow direction and the magnetic field. Check the healthiness of the fuse. Uo = K*QV. The flow rate of this liquid is then calculated using the formula, Q = V x A, where V is velocity of the liquid and A is the cross sectional area of the pipe. FMG3000 Series magmeters offer a variety of output options for use with Omega flow instrumentation that has a frequency or 4 to 20 mA output. Magnetic flowmeters measure the velocity of conductive liquids in pipes, such as water, acids, caustic, and slurries. Now check the cable healthiness which is connecting the magnetic flow meters transmitter and the sensor. Magnetic flow meters mainly are applicable to liquids that have a conductivity of 0.1 microsiemens per centimeter or greater. These magnetic flow meter are from reliable brands and designed to provide the highest accuracy measurements. Check the healthiness of the fuse. Magnetic flow meter, vortex flow meter, variable area rotameter, Coriolis flow meters are used a lot in petroleum industry. As the conducting liquid flows through the magnetic field a voltage is developed across the liquid. According to Faradays law, when the conductive fluid flows through a magnetic field of the sensor, an electromotive force proportional to the volume flow is generated between the pair of electrodes, which is perpendicular to the flow direction and the magnetic field. Faradays Law In Magnetic Flow Meter Use. A magnetic flow meter relies on Faradays Law of Induction which basically says this: Moving a conductor through a magnetic field will generate an electromotive force which is proportional to the velocity. 1. Click for more details. Most aqueous (water-based) fluids work fine with magnetic flowmeters. The faster the flow of the fluid, the greater the voltage signal generated. A magnetic flow meter ( mag meter , electromagnetic flowmeter) is a transducer that measures fluid flow by the voltage induced across the liquid by its flow through a magnetic field. A Magnetic Flux Loop.png 372 311; 11 KB. Welcome! Introduction to Magnetic Flow Meters. Electromagnetic flowmeter is a kind of volume flow meter. What is a magnetic flow meter used for? The AG90-series battery powered, insertion electromagnetic flow meter is designed for use with conductive fluids in 412 pipe. Magnetic flow meters consist of a detector and a converter, with the principle of the detector adopting Faraday's electromagnetic induction law. Reverse osmosis (RO) is a water purification process that uses a partially permeable membrane to separate ions, unwanted molecules and larger particles from drinking water. Magnetic Flow Meter- Its Working, Uses. The magnetic flow meters sensor is placed inline and measures an induced voltage generated by the fluid as it flows through a pipe. The electromagnetic flowmeter is also ideal for applications requiring low pressure drop and low maintenance costs.
