Why do aircrafts need 400 Hz power supply? Similarly, the famous Hobart brand had been producing aircraft ground power units since 1946. measurement wires embedded in the main cable measure the voltage at the aircraft. Power factor is the ratio between the real power (P in kW) and apparent power (S in kVA) drawn by an electrical load. We repeatedly asked you to consider AGPU just as a box. If you are reading this article, it is understood that you have a scientific and technical taste and it might have crossed your mind that why does an aircraft need 400 Hz electrical frequency? Choice of frequency depended primarily upon the maximum speed generators could run at as well as the impact on associated devices.
Both of the above mentioned companies i.e. We will discuss this point in more detail shortly. You can now have the best of both worlds and enjoy peace of mind without compromise. Whether you supply aviation, rail, mining, military or heavy machinery sectors; we have a product solution to meet your customers' needs. Usually, an aircraft employs its APU to power its electrical, electronic, hydraulic, and related systems; this also applies its APU to start its engines and help them operate on their own power. Using a 28V jump starter would normally be a non-starter (excuse the pun). Theme: Newsup by Themeansar. Regulatory bodies in aviation have a very proactive approach on both occupational health and safety as well as environmental preservation. In short, if the jet engines are kept on, many of the ground support activities would not remain possible. characteristics of the supply system and cable are determined by automatic measurements. All of the other steps are same as already discussed above for narrow body aircrafts.
Ground Power Unit (GPU) is an electrical device which powers an aircraft while on the ground. A Fuel Powered Aircraft Ground Power Unit is like a diesel generator that produces power at 400 Hz and 115 Volt (3-Phase) with the help of a generator run by a diesel engine. This will ensure that you receive the best flight capabilities from your aircraft system. After operations, the device will electrically rewind the cable back onto it's cable reel. What is an Aircraft Air Start Unit (ASU) & How does it work? The same company developed 400 Hz aircraft ground power unit (AGPU) for larger aircrafts in 1985. | They are powered by internal combustion engine generally diesel engine that needs maintenance just like any engine does. For above aircrafts, a team of two AGPU operators is generally deployed. You need to ensure that you can start your engine at all times and you also need to perform software updates without compromising or even ruining your aircrafts on-board batteries. Moreover, bridge mounted AGPUs cannot be serviced or checked for technical faults when the jet bridge is engaged to an aircraft unless you unmount these units a cumbersome task in itself. Weight is of paramount importance in an aircraft and engineers optimize it to be as light as possible.
He has a deep technical understanding of electrical engineering and is keen to share this knowledge.
Ground power units for aircraft typically include a wire harness with terminals for the battery and throttle control. While different manufacturers around the world used different electrical frequencies ranging from 60Hz to 800 Hz, the first step towards standardization of 400 Hz electrical frequency was taken by US Air Force when it made 115/200 Volt AC power supply at 400 Hz mandatory in 1959 in military standard no. There are three types of aircraft ground power units with respect to place of installation of the unit and how much mobile are they. RLC Circuit, Resistor Power Loss - some Modelica experiments, 8 Steps to Low Voltage Power Cable Selection and Sizing, 9 power supply issues solved by using a UPS, Click here to view the notes listin a table format, Click here to view the notes indexed by tag. Perhaps your aircraft is voltage sensitive and equipped with an over voltage protection relay? Aircraft have strict specifications for the quality of power: The amount of kVA required is dependant on the aircraft type and size. It is called the interlocking LED. Lightweight & Durable 20" Carry-on Luggage from Rockland, What is an Aircraft Ground Power Unit (AGPU or GPU).
START PAC power supplies are built for heavy duty application and are designed to withstand all environments, however tough.
As you can see, ground power units provide excellent aircraft electrical performance and are very reliable. On wide body aircrafts such as Boeing 777 and Airbus A350, height of the AGPU receptacle is not reachable without an external aid. For example, AGPU receptacle on Boeing 777-300 are located 2.8m (9 ft.) above ground. Aircraft Ground Power Units (AGPU) were in use even when the aircrafts used 28 Volt DC power systems before the whole 400 Hz transition. Second, it is a jet engine that produces power by burning fuel that has an associated cost impact as well as produces carbon dioxide emissions. The operator extracts and lays the AGPU cable on ground in a way to avoid the cable from getting overrun by any vehicle on the aircraft stand. What is an Aircraft Preconditioned Air (PCA) Unit? The output of each inverter phase is then adjusted according to the measured current. They produce and supply the 115 V and 400 Hz electric power to aircrafts until their batteries are drained and a recharge is required. We are proud to have built Century Avionics for more than 40 years on Lanseria International Airport from a company that achieved success through one of the first Garmin GPS-100 installations to much admired glass cockpit upgrades like the Garmin G1000 Nxi integrated Flightdecks. Why 90kVA is a standard capacity will be discussed later in this article. Ground power units are usually used in the civilian and military aircraft industries, where they allow for tasks to be accomplished that need a stable and prepared supply of outdoors energy. Similarly, the AGPU receptacle on Airbus A350-900 is located 2.58m (8.46 ft.) above ground. In 1940s and 1950s, 28 Volt DC engine driven generators were being widely used for onboard power generation. Typical specification ratings would be 200 V, 200 A continuous within a temperature range: -55C to +125C. The earliest requirement of electrical power in aircrafts arose for starting the main engines. The third option is the brand new START PAC GREEN, the worlds first emission free GPU; powered by a large 26V battery bank, its capable of starting any kind of electrically-started aircraft. Additionally, some pop-up type pit systems are available, which simply the cable handling. We use the revenue to support our site. For 400 HZ systems, the impedance will be around eight times larger than normal mains systems and consequently voltage drop becomes a major issue. If you opt for an unpressurized GPU, you will find that these units are available in several different sizes. Synchronization and switching over of the power supplies is carried out by equipment on board the aircraft. Look no further: START PAC has developed the SUPER PAC model line with both Lead Acid or Safe Lithium-Ion technology. They are given that name because they are installed under a passenger boarding bridge (also known an jet bridge). All START PAC Ground Power Units are made in-house and combine quality components, unparalleled after sales support and a 1 year warranty as standard. At this stage, pilots cannot keep the jet engines on because it is a safety hazard for ground staff that gets busy with different tasks around the aircraft. As the name suggests, their mobility allows greater flexibility for the airport operations team to tow the unit wherever required and serve different aircrafts parking on different aircraft stands throughout the day.
On the downside, battery powered AGPUs have a limited time in which they can offer their services. For example, height of AGPU receptacle of Airbus A320 is 2.0m (6.56 ft.) above ground. Phone: +27 11 701 3244 Connectors are often integrated with push buttons and LEDs for operating frequency converters and power delivery systems. Fixed ground power is the supply of suitable 400 Hz power using a permanently installed installation for use on parked aircraft. Two of them Ranger and Hi-Brd 4 are equipped with eco-friendly, diesel engines and permanent magnet generators in order to provide you with up to 150 Amps or 300 Amps of continuous power, respectively. This means that you require a combination GPU unit both for your remote operations and also, for smooth engine starting. The answer lies in the relation between electrical power transmission and electrical frequency and we would take some time to approach this problem from a fundamental physics aspect.
Moreover, like any car, they also generate carbon dioxide emissions that are not environmentally friendly. When an aircraft is in air, all of its electrical power requirements are fulfilled by jet engines i.e. However, the main problem of these units is with their maintenance friendliness. the jet engines on an aircraft not only generate thrust to make the aircraft fly but also act as electrical power plants to supply power to all critical and auxiliary systems during flight. The reason behind the selection of 400 Hz was the same as discussed earlier i.e. A ground power unit (GPU) is a form of ground support equipment (GSE) that is used to power up an unpowered aircraft while it is still on an airport runway, an airfield, or anywhere on the floor.
Learn more about Power All Systems' ground power units for aircrafts. However, with increased frequency, you can reduce the size of electric motors and some other electrical components to get the same amount of power from them. However, APU has two problems. The second type are Bridge Mounted Aircraft Ground Power Units. AGPU operation is complete at this moment. The same problem is also dealt with adding an internal combustion engine in the unit as a contingency to kick in if battery level is low at the time when AGPU is needed. Depending on the size of the plane, the number of required connectors varies from one to four. These AGPUs combine the mobility of conventional fuel powered mobile AGPUs with ergonomics and environmental friendliness of utility powered AGPUs. Copyright 2022 Century Avionics | Designed By The Website Hoster. Another drawback is cost of fuel consumption for towing these units from one place to another with he help of towing tractors. During design processes, the amount of power required is calculated and suitable equipment installed. Greater power requirement translated into shifting towards AC power generation because high voltage DC power generation onboard was not a viable option in view of safety considerations. However, lower it too much and you would see your bulb flickering with the energy pulses.
We are looking for a static electric GPU for a B737-800, Your email address will not be published. When an aircraft is parked at an aircraft stand, there is tremendous movement all around it. Mounted under the jet bridge, they have zero foot print on ground. However, more and more airports around the world are converting to utility powered AGPUs due to environmental regulations and concerns. Aircraft connectors are standardised and rated at IP67. By 1990s, aircraft ground power units were being mass produced for meeting commercial aircraft power demands. Generally, airports do keep a certain number of mobile AGPUs in their inventory and use them for.
First, it generates quite a lot of noise that becomes a source of inconvenience for ground staff.

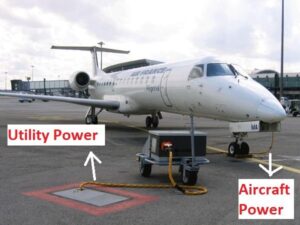

They are designed for use with aircraft that are low and slow to take off. Given the relative short transmission distances in aircraft, the negative aspects of larger voltage drops at 400 Hz are not so serious. Utility powered fixed AGPUs are installed on the aircraft stands where utility power is hardwired at their inputs and as described earlier, their output is taken near the aircraft AGPU receptacle by means of a utility pop-up pit system or cable retriever system. For example, Axel Ackerman a Danish entrepreneur and inventor developed 28 Volt DC rectifier unit for smaller aircrafts in 1953 by his company AXA Power. Battery powered AGPUs are predominantly offered in the form of mobile AGPUs because installing a battery on a fixed AGPU doesnt have much advantage. When the aircraft reaches and stops at the aircraft stand, requirements of thrust remain no more, however, requirement of electrical power remains. Employing frequency converters which can detect aircraft synchronization problems and react accordingly is a good idea. Apart from above, a characteristic advantage of these AGPUs is that they dont occupy any space on the aircraft stand. However, it also brought complexities associated with AC power including the question of choosing the right frequency. There are three main types of aircraft ground power units based on power sources. For example, if an airport does not receive much traffic of cargo aircrafts, it is not cost effective to install fixed type AGPUs on cargo stands of the airport as they would remain under-utilized. The majority of our units (exceptions being the 3324, Ranger, Hi-Brd 4 and START PAC GREEN) are equipped with our patented Quick Change design to ensure that batteries can be changed in less than one minute, thus saving you time and money on maintenance. Dont let recharging issues get in the way of managing a complete fleet and performing multiple starts; let high battery capacity units designed by START PAC do the hard work for you. Consequently, in the first world war (1914-1918), wind-driven generators became a standard in military aircrafts to power the ignition system of the engine as well as wireless telegraphy. This variation of inductance between phases, while not that important at mains frequency, become more pronounced at 400 Hz and can lead to imbalanced voltages. Although not as strong as its pressurized counterpart, a GPU offers greater protection to your aircraft in the event of low pressure. They simplify ground support operations by removing the hassle of planning movement of mobile AGPUs from one aircraft stand to another by a ramp supervisor. Moreover, by eliminating movement, they provide a twofold advantage. For point of use systems, the number of GPU is dependant on aircraft size. These types are. However, the case of aircrafts is different. the Electrical frequency around the world is standardized at 50/60 Hz (that is 50/60 cycles per second) because power plants are located far from cities where bulk of electricity is used. With this specifically in mind, START PAC has developed a range of 26V starting solutions.
